Dokunmatik panele (8.4 inç) sahip büyük renkli TFT-LCD, kolay tuş girişi sağlar. 4 titratöre kadar, MKV-710B Volumetrik veya MKC-710B Coulometric Karl Fischer nem titratörü veya ek AT-710B potansiyometrik titratörler bağlanabilir ve aynı anda ölçüm yapılabilir.

Genel Özellikler

Titrant bilgisi, büret ünitesindeki IC çipinde depolanır (Akıllı büret)

Elektrot kablosunda saklanan bilgiler (Akıllı elektrot)

Yenilenen büret ünitesi

Dokunmatik panelli büyük renkli TFT-LCD (8,4 inç)

İki farklı kullanıcı seviyesi ve izin

PH / geçirgenlik, pH / iletkenlik veya pH / sıcaklık gibi iki farklı potansiyel aynı anda kaydedilebilir.

Titrasyon sırasında izleme sıcaklığı güvenli ölçüm sağlar

Ölçüm sonuçları PDF'ye dönüştürülür ve bir USB flash sürücüde saklanabilir

Type

Automatic Potentiometric Titrator

Model

AT-710S

AT-710M

Product configuration

MCU-710S + AT-710 + IDP-100 + Propeller stirrer

MCU-710M + AT-710 + IDP-100 + Propeller stirrer

Detection range

1) Potentiometric	:	-2000mV to +2000mV
2) pH	:	-20.000 to 20.000pH
3) Temp.	:	0 to 100°C

Titration mode

Auto Titration , Auto Intermit , Intermit , Stat , Petroleum Titration , COD

Method

Standard method 120 , Combined method 10 (Max 5 methods can be linked)

Kinds of titration

Potentiometric (acid/base , redox , precipitation) , Photometric , Polarization , Conductivity

Titration form

Full titration (Auto EP detection) , EP Stop , Level Stop , Intersect , EP Stop/Level Stop

Special application

Measurement of electrode potential (pH , potential) , Acid dissociation constant (pKa)

Simultaneous recording of 2-way input potential (e.g. Titer vs. pH+%T , Titer vs. pH+μS) , Learn

Key operation

Touch panel

Displays

1) 8.4-inch color LCD 800 x 600 dots

2) English / Japanese / Mandarin Chinese / Korean / Russian / Spanish / German / French

3) 1-channel display

3) Simultaneous 4-channel display (Can also display
Karl Fischer Moisture titrator simultaneously)

Calculation

Concentration of content , statistics data processing (mean , SD and RSD) and automatic averaging of blank and factor value

Data storage

500 samples

GLP conformance

Registration of operator / User group administration
Titrant	:	Reminder of date of factor measurement / Alarm to indicate remaining reagent / Reminder of piston replacement date / Reminder of reagent replacement date / History of factor measurement
Check performance	:	Reminder of scheduled checkdate / Record of check results
Management of electrode	:	Reminder of calibration date / Record of calibration history / Electrode check / History of electrode check
Verification of burette capacity	:	Verification / Record of verification results
Management of conduction time	:	Display of operating time

Burette size

20mL glass burette with brown cover (Standard)
Optional burette units : 10mL , 5mL , or 1mL

Burette accuracy

50mL burette(Auto dispenser) +/- 0.5mL
20mL burette +/- 0.02mL ; reproducibility +/- 0.01mL
10mL burette +/- 0.015mL ; reproducibility +/- 0.005mL
5mL burette +/- 0.01mL ; reproducibility +/- 0.003mL
1mL burette +/- 0.005mL ; reproducibility +/- 0.001mL

Preamplifier

1) STD	:	pH (mV) and mV , 2 inputs (Standard)
2) PTA	:	pH (mV) , mV and photometric , 3 inputs
3) POT	:	pH (mV) , mV and polar , 3 inputs
4) CMT	:	pH (mV) , mV and conductivity , 3 inputs (factory setting required)
5) TET	:	pH (mV) 2 ways and mV , inputs (factory setting required)

External I/O

RS-232C port x3	:	for Dot matrix printer/Electronic balance/Data Capture Software (SOFT-CAP)
SS-BUS x1	:	for Multiple sample changer , APB
ELE. x1	:	for Smart electrode
USB x1	:	for USB flash drive , Thermal printer , A4 printer , Keyboard , Barcode reader , Foot switch , USB HUB
TEMP.COMP. x1	:	Input terminal for temperature sensor to correct reagent volume , sensor Pt100 , temperature reading accuracy : +/- 0.5°C (burette 1 only)

LAN ×1

for Personal computer (PC)

Extensibility

Measuring instrument :
Automatic Potentiometric Titrator (AT-710) , Karl Fischer Moisture Titrator (MKV-710/MKC-710) ; Three of these instruments can be added.

Automatic piston burette :
Can control max 10 burette drives (Including two built-in burette drives)

Multiple sample changer : CHA-600 , CHA-700

Ambient condition

1) Temperature		:		5 to 35°C
2) Humidity		:		85%RH or below (no condensation)

Power source

AC100 to 240V +/- 10% 50/60 Hz

Power consumption

Main unit		:		Approx. 30W
Printer		:		Approx. 7W

Dimensions

Touch panel controller	:	225(W) x 190(D) x 42(H)mm
Titration unit	:	141(W) x 296(D) x 367(H)mm (not incl. tubing)
Printer	:	106(W) x 180(D) x 88(H) mm

Weight

Touch panel controller	:	Approx. 1.5kg
Titration unit	:	Approx. 4.0kg
Printer	:	Approx. 0.4kg

Conformity standard

CE marking EMC : EN61326-1 LVD : EN61010-1 RE Directive
Burette unit EBU FCC Part15 SubpartC FCC ID : 2ABSVEBU01

Taksit Seçenekleri

Önerileriniz

Bu ürünün fiyat bilgisi, resim, ürün açıklamalarında ve diğer konularda yetersiz gördüğünüz noktaları öneri formunu kullanarak tarafımıza iletebilirsiniz.
Görüş ve önerileriniz için teşekkür ederiz.

Ürün resmi kalitesiz, bozuk veya görüntülenemiyor.

Ürün açıklamasında eksik bilgiler bulunuyor.

Ürün bilgilerinde hatalar bulunuyor.

Ürün fiyatı diğer sitelerden daha pahalı.

Bu ürüne benzer farklı alternatifler olmalı.

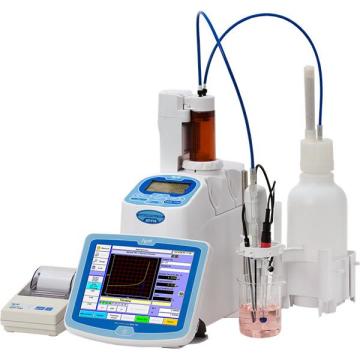

Kyoto-KEM AT-710S Otomatik Potansiyometrik Titratör
