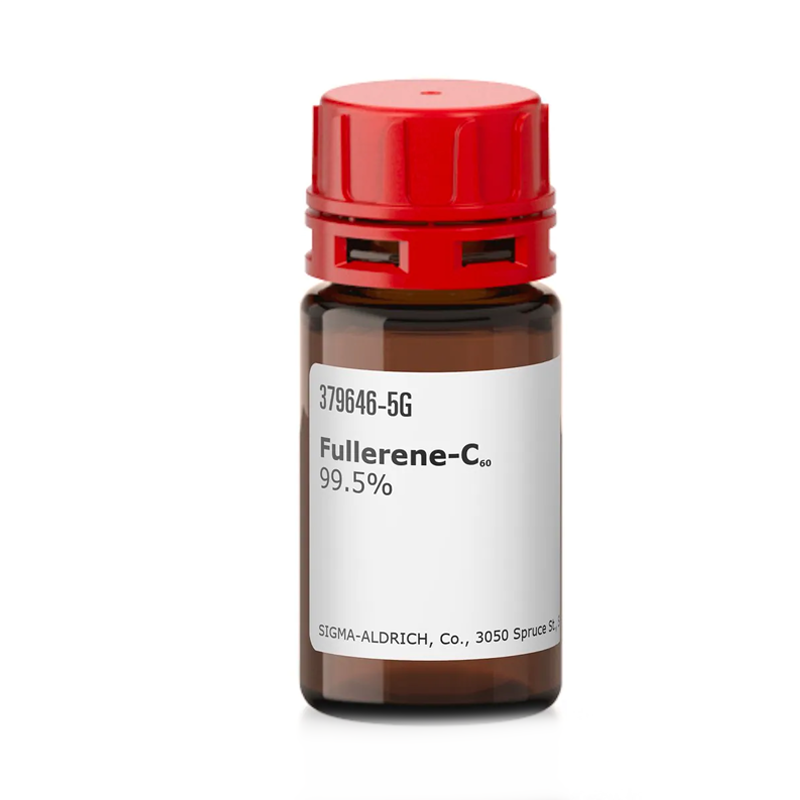

Sigma-Aldrich 379646 Fullerene-C60 99.5% 5 gr
| Sigma-Aldrich 379646 Fullerene-C60 99.5% 5 gr |
|
Synonym(s): Buckminsterfullerene, Empirical Formula (Hill Notation): C60
SDS için Resmi Tıklayınız... |
|
PROPERTIES
Quality Level 100
assay 99.5%
form crystalline powder
greener alternative product characteristics
Design for Energy Efficiency Learn more about the Principles of Green Chemistry.
mp >280 °C (lit.)
solubility
organic solvents: soluble
organic solvents: soluble
Orbital energy
HOMO 6.1 eV
LUMO 4.5 eV
OLED Device Performance
ITO/CuPc/NPD/Alq3/C60/Mg:Ag
ITO/NPD/Alq3/C60/LiF:Al:Ag Color: green Max. Luminance: 7000 Cd/m2 Turn-On Voltage: <5 V
ITO/TPD/Alq3/C60/LiF/Al/Ag Color: green Max. Luminance: 4000 Cd/m2 Turn-On Voltage: <5 V
greener alternative category Enabling
SMILES string c12c3c4c5c1c6c7c8c2c9c%10c3c%11c%12c4c%13c%14c5c%15c6c%16c7c%17c%
18c8c9c%19c%20c%10c%11c%21c%22c%12c%13c%23c%24c%14c%15c%25c%16c%26c%17c%
27c%18c%19c%28c%20c%21c%29c%22c%23c%30c%24c%25c%26c%31c%27c%28c%29c%30%31
InChI 1S/C60/c1-2-5-6-3(1)8-12-10-4(1)9-11-7(2)17-21-13(5)23-24-14(6)22-18(8)28-20(12)30-26-16(10)15(9)25-29-19(11)27(17)37-41-31(21)33(23)43-44-34(24)32(22)42-38(28)48-40(30)46-36(26)35(25)45-39(29)47(37)55-49(41)51(43)57-52(44)50(42)56(48)59-54(46)53(45)58(55)60(57)59
Inchi Key XMWRBQBLMFGWIX-UHFFFAOYSA-N |
