SOLARIS CHEM SOL5061 PCBM-PC61BM CAS No.: 160848-22-6
|
SOLARIS CHEM SOL5061 PCBM-PC61BM CAS No.: 160848-22-6 |
Used as an electron acceptor from Donor materials such as P3HT (SOL4106), PCDTBT (SOL4280), or PTB7 (SOL4700) to make high Open Circuit Voltage (Voc), high Power Conversion Efficiency (PCE) bulk heterojunction solar cells, >99.9% [6,6] isomerized.
Available for large-scale projects.
Description
PCBM – PC61BM – SOL5061
CAS: 160848-22-6

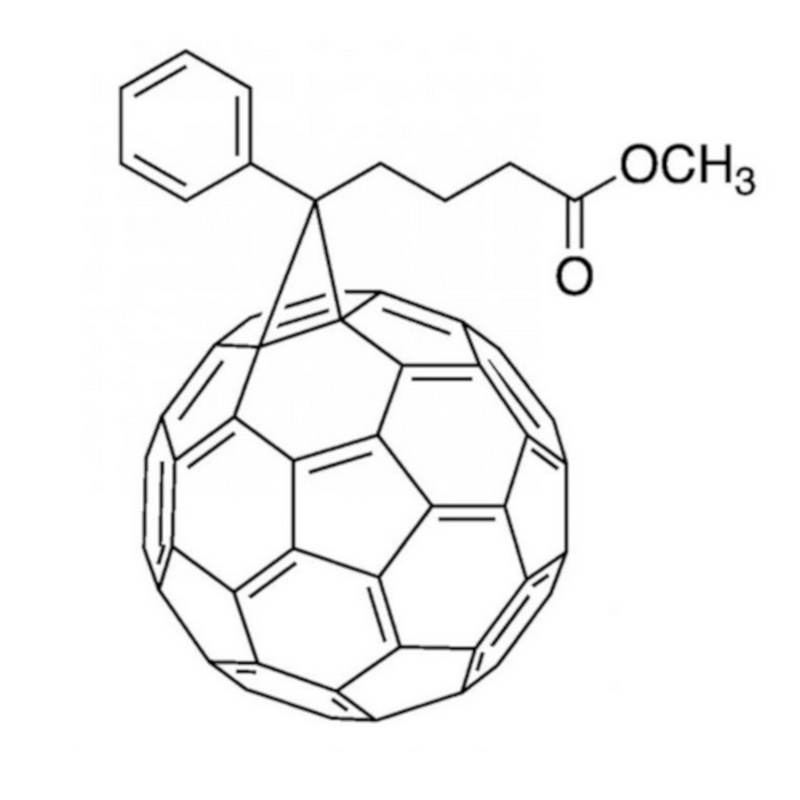

PCBM is the common abbreviation for the fullerene derivative, [6,6] phenyl-C61-butyric acid methyl ester and is one of the most commonly used electron-accepting materials in organic photovoltaic devices.
It is commonly used in flexible plastic or electronic solar cells in conjunction with an electron donor material such as P3HT (SOL4106), PCDTBT (SOL4280), or PTB7 (SOL4700) to make high Open Circuit Voltage (Voc), high Power Conversion Efficiency (PCE) bulk heterojunction solar cells, >99.9% [6,6] isomerized.
It is a more practical choice for being an electron acceptor when compared to fullerenes due to its solubility in chlorobenzene. This allows for processable donor/acceptor solution mixtures, a necessary property for “printable” solar cells.
Choose between:
Grade > 99.00% (SOL5061B)
Grade > 99.50% (SOL5061A)
Grade: 99.90% (SOL5061Z)
Grade: 99.95% (SOL5061Y)
Safety Data Sheet: SDS-SOL5061
Technical Data Sheet:
| Acronyms: | PCBM – PC61BM – C60PCBM – PC60BM – [60]PCBM |
| Chemical Name: | [6,6]-Phenyl C61 butyric acid methyl ester |
| CAS# | 160848-22-6 |
| Color and Texture: | dark brown, solid, crystalline powder |
| Molecular Weight: | 911 g/mol |
| Absorption, λmax (Media): | N/A |
| Emission, λmax (Media): | N/A |
| HOMO (eV): | -6.1 eV |
| LUMO (eV): | -3.7 eV |
| Melting point (°C): | N/A |
| Solubility (Solvent): | toluene, chlorobenzene, 1,2-o-dichlorobenzene |
| Other: | N/A |
